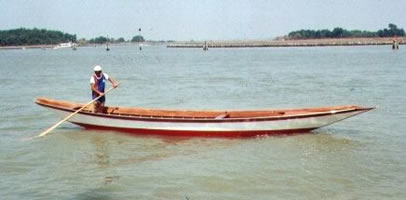

4 Oars "Mascareta"

Characteristics of the boat:

• Type: Typical Venice Lagoon boat.
• Model: 4 Oars "Mascareta"

^ top

Boat Plan

Sizes:

• Length overall: 9.10 m
• Width overall: 1.37 m
• Height of boat: 0.45 m

^ top

Building materials:

• Sides: durmast-wood
• Keelsons: larch-wood
• Beams: durmast-wood or larch-wood
• Sides planking: marine plywood
• Bottom planking: marine plywood
• Gunwales: mahogany-wood
• Saxboards: mahogany-wood
• Decks: marine plywood
• Dunnages: marine plywood
• Ironware: stainless steel prow, poop and oars holes (n. 4) blades

^ top

Hull making:

• Frames 29 cm. apart
• Inner edges between sides and bottom
• Prow socle made with solid mahogany-wood

^ top

Gluing-riveting and other fixing:

• Marine paste gluing
• Galvanized rivets and inox screws of different sizes

^ top

Painting:

• Bottom, outside sides and decks painted with polyurethane enamel or with varnish
• Bilges and inner sides painted with synthetic-oil enamel

^ top

Click here for more info about this boat

All the specification in this page are just as indication and not binding.
